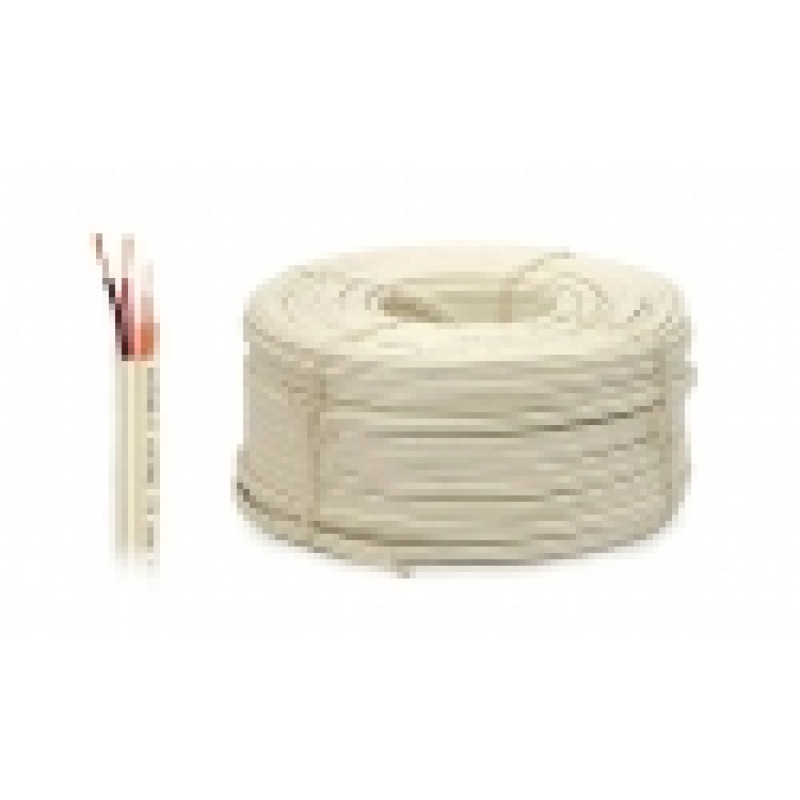

RF Koaksialni kabel CamSet premera 0.59/3.7mm z 2x elektro žico 100m, 75Ω CCTV inštalacijski kabel z napajalnim kablom, izgube pri 0.5/1/2.3GHz 0.26/0.37/0.58dB
- Model CamSet CCTV-YR59 + 2PW
- Premer jedro/plašč - 0.59 / 3.7mm
- Električni presek vodnika 2x 0.5mm
- Dielektrik električnih žic 2x 1.7mm
- Impedanca 75Ω
- Kapacitivnost 67pF/m
- Izgube 500/1000/2300MHz - 23.5/37/58 dB
- Teža 7.5 kg
Two wires of 0.5 mm diameter allow to power CCTV devices with 12 VDC, 24 VAC, or 230 VAC. Thus it is possible to send power to cameras put in outdoor housings. The possibility of using the cable up to 230 VAC has been confirmed by the certificate issued by the EVPU laboratory in Slovakia.
| Name | CCTV YAR75-0.59/3.7 |
||
| Code | M5995 | ||
| tolerance | |||
| Copper core of the coax |
|||
| Diameter |
mm |
0.58 |
+/- 0.013 |
| Dielectric | |||
| Diameter of coax dielectric |
mm |
3.7 | +/- 0.1 |
|
Diameter of dielectric of power wires |
mm |
2x1.7 |
+/- 0.1 |
| Braided screen |
|||
| Diameter of wires |
mm |
0.11 |
|
| Number of wires |
pc. | 64 |
|
| Covering factor |
% |
50 |
|
| Outer PVC coating |
|||
| Outer diameter of coax |
mm |
5.5 |
|
| Outer diameter of power wire |
mm |
4.7 |
|
| Other parameters |
|||
| Minimum bending radius | 20 x outer diameter of coax |
||
| Operating temperature |
°C | -30 to +60 | |
| Electrical parameters |
|||
| Impedance of coax |
ohm |
75 |
+/- 3 |
| Capacitance of coax |
pF/m | 67 | +/- 2 |
| Wave reduction factor | % |
66 |
|
| Resistance of core of coax |
ohm/km |
<65 |
|
| Resistance of power wires |
ohm/km |
<37 |
|
